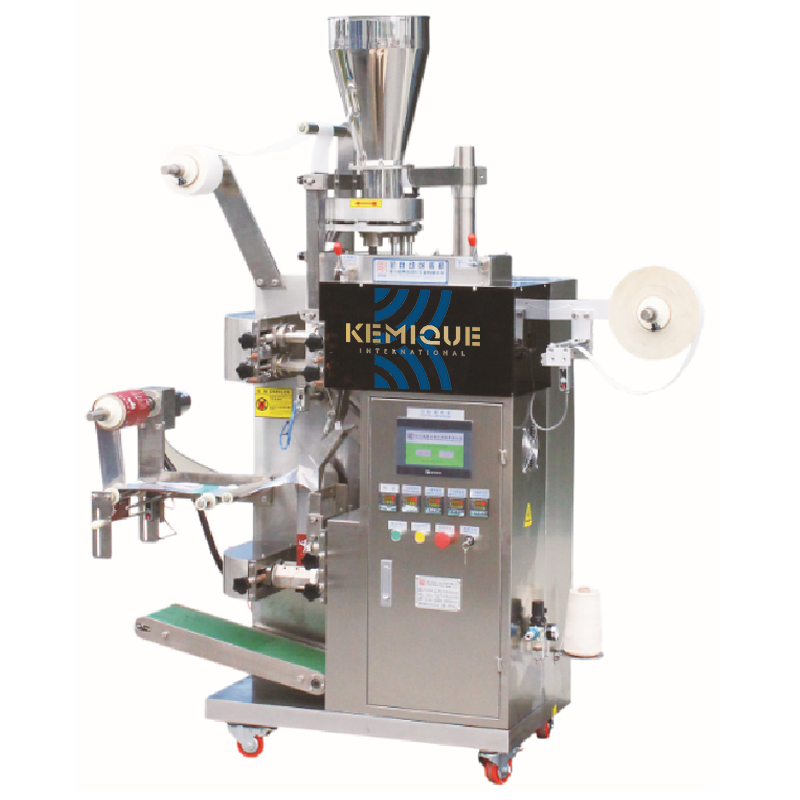

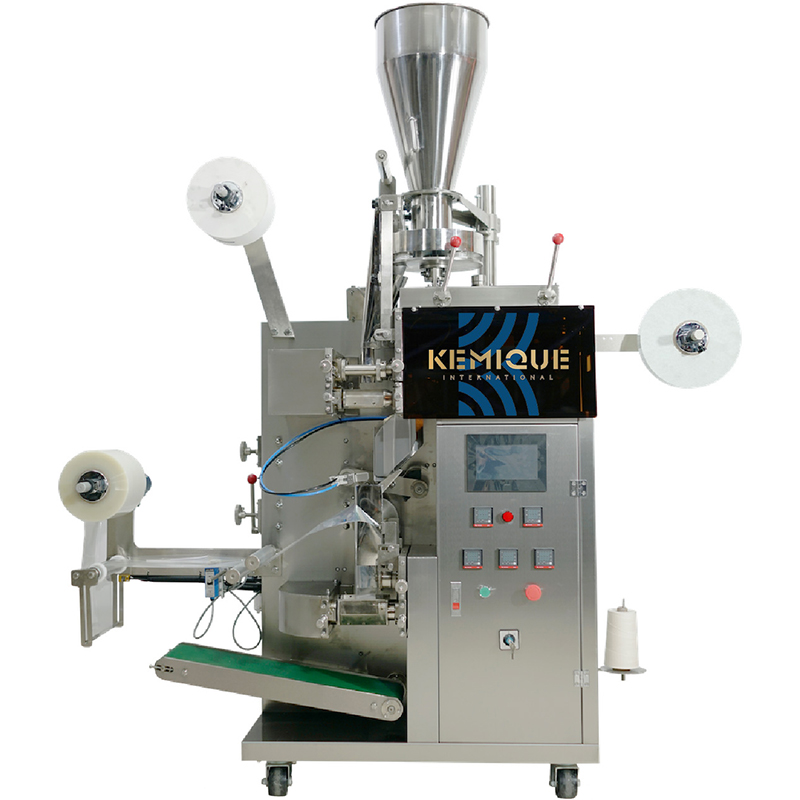

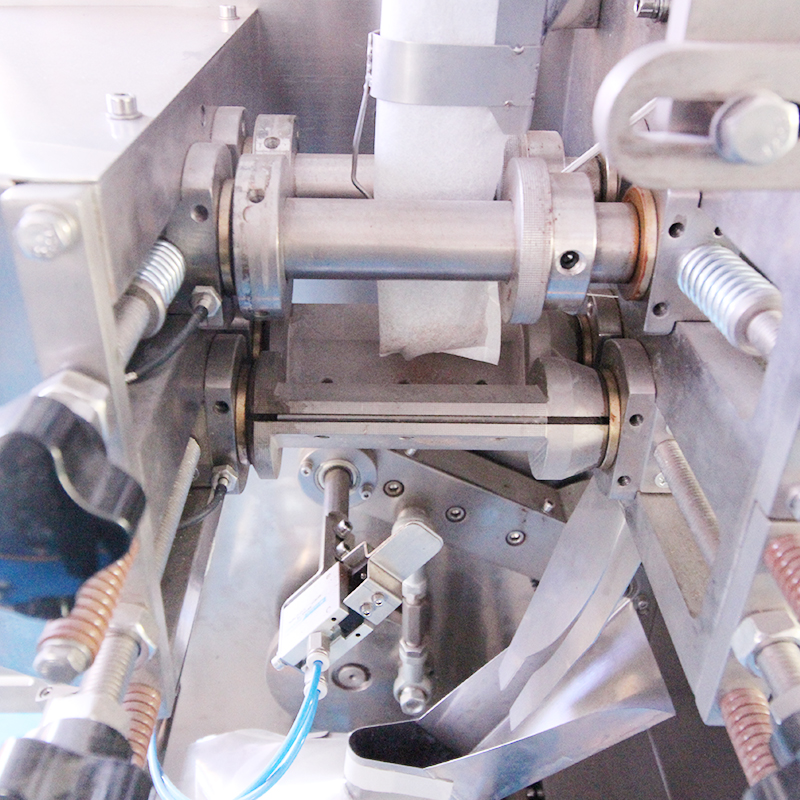

Autoamtic Tea Bag Packaging Machine
Inner Filter Tea Bag And Outer Pouch Packaging Machine

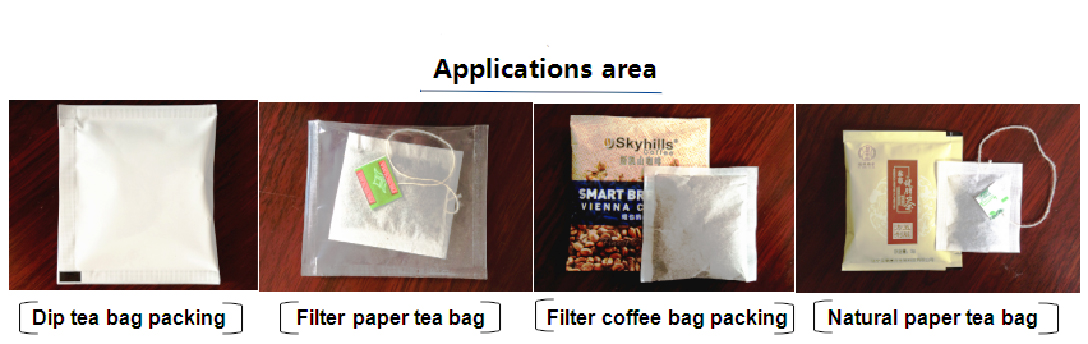

Full automatic tea bag packaging machine, suitable for granulated tea packaging. This machine automatic pack tea with inner filter bag and outer pouch, the tea inner filter tea bag has tag and thread.
Food grade stainless steel for material contact parts.
Paratmeters
Working speed: 5-40 bags/min
Filling system: VOLUMETRIC CUPS
Bag type: Three sides sealing
Inner filter bag size: 50-70mm * 40-80mm(L X W)
Outer bag size: 85-120mm * 70-95mm(L X W)
Sealing method: Heat sealing
Weighing range: 0-15ml/bag
Power: 220V Single phase 50/60Hz
Machine Weight: 450kg
Overall dimensions: 1270 * 860* 1840mm
Machine Standard Features:
- Stainless Steel Closed Structure Frame Construction.

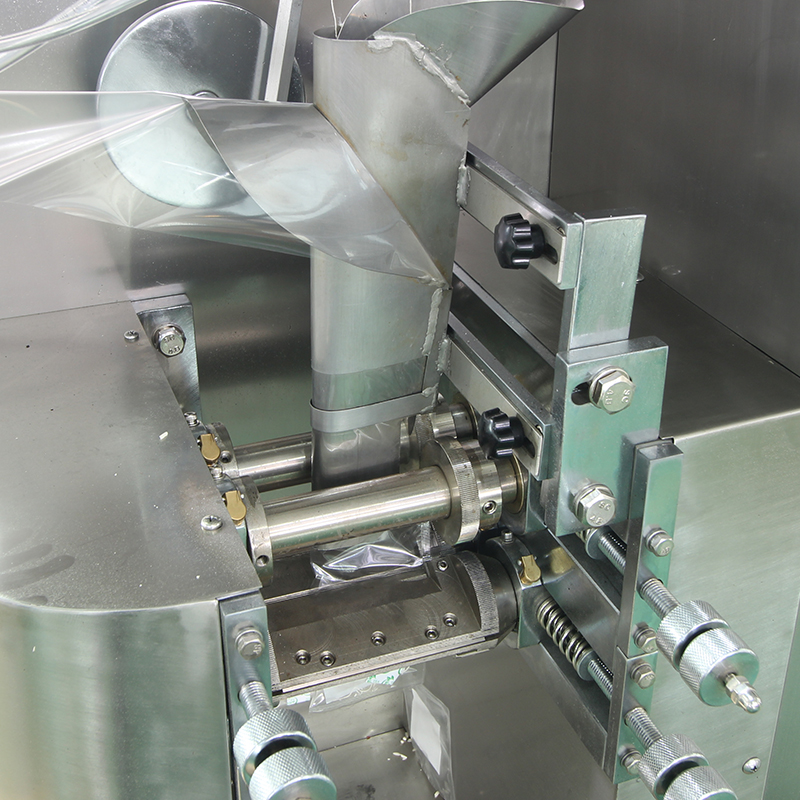

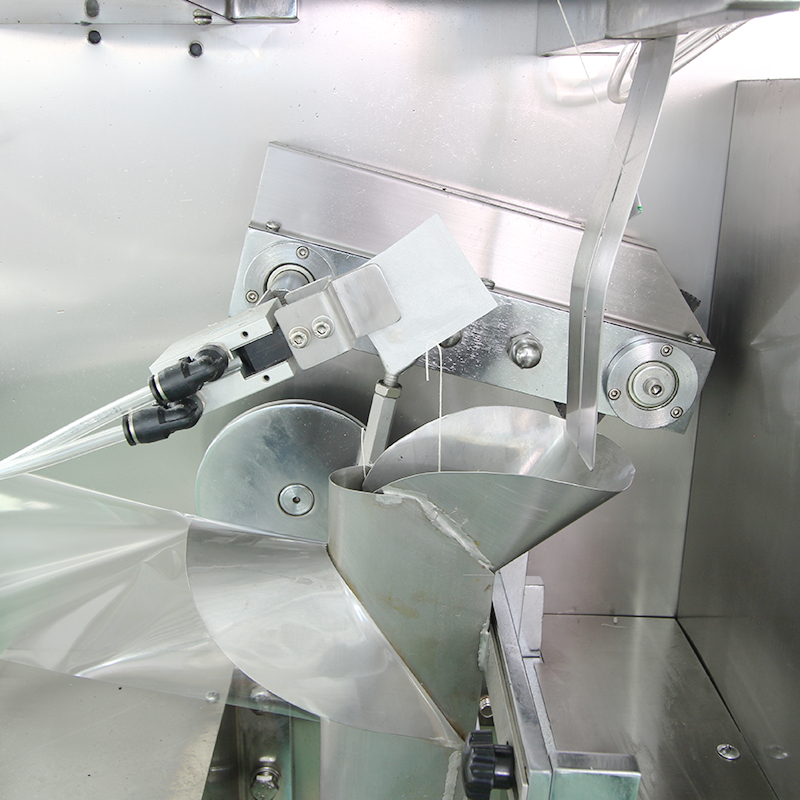

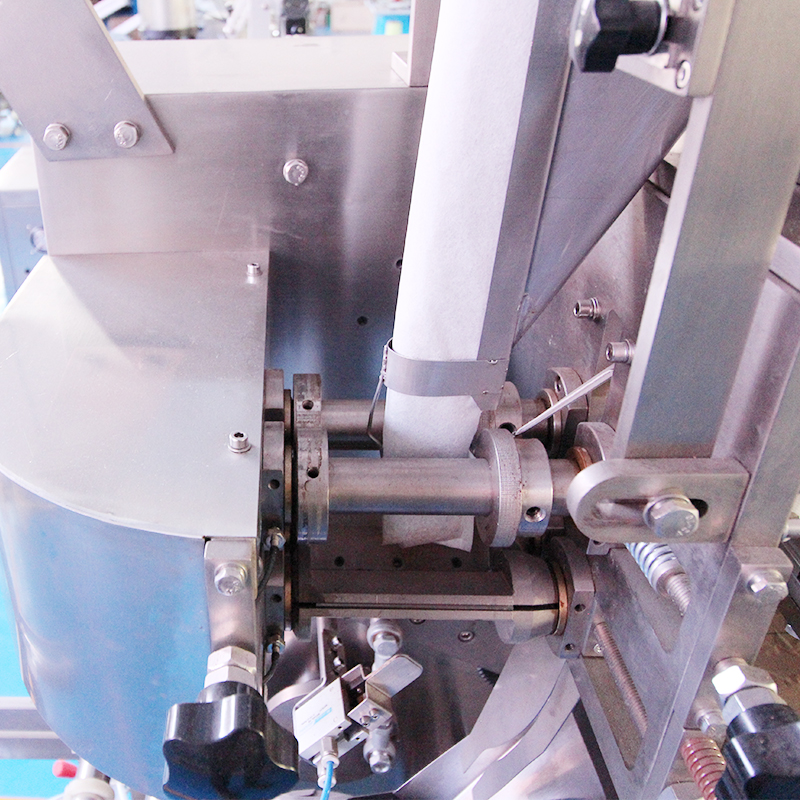

- One-piece bag former.
- Industrial PLC (Mitsubishi), Weinview touch screen (7″).
- Independent temperature control (PID).
- Automatic Detection for the end of Film Roll.
- Motorized Centering of Film Roll holders.
- Automatic Detection of irregularities in the Sealing Temperature or in the Pneumatic Pressure of the System.
- Easy Interface with Peripheral Equipment.
- With Certificate of Europe.
